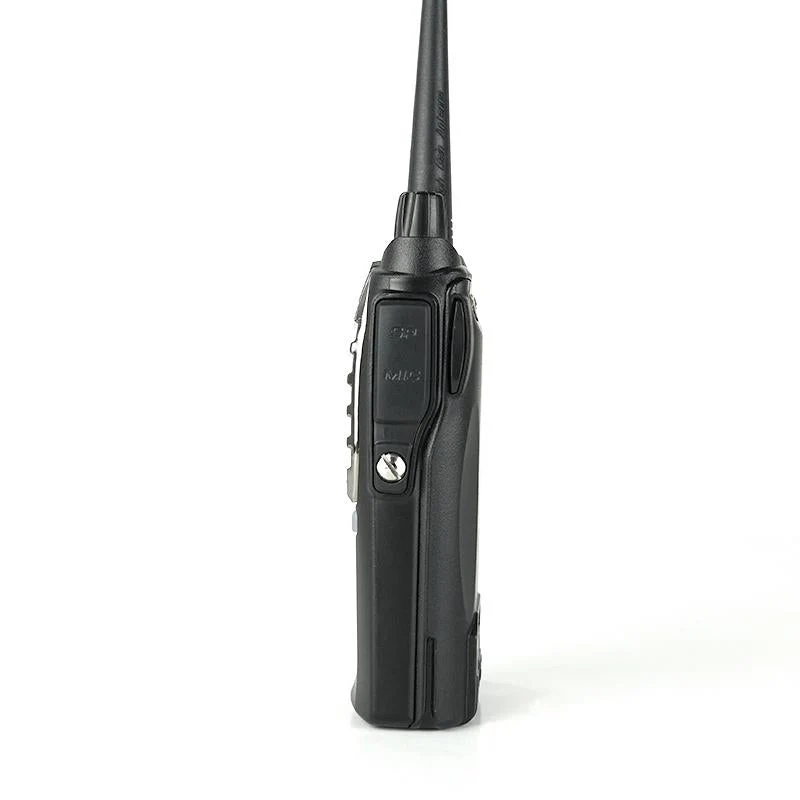

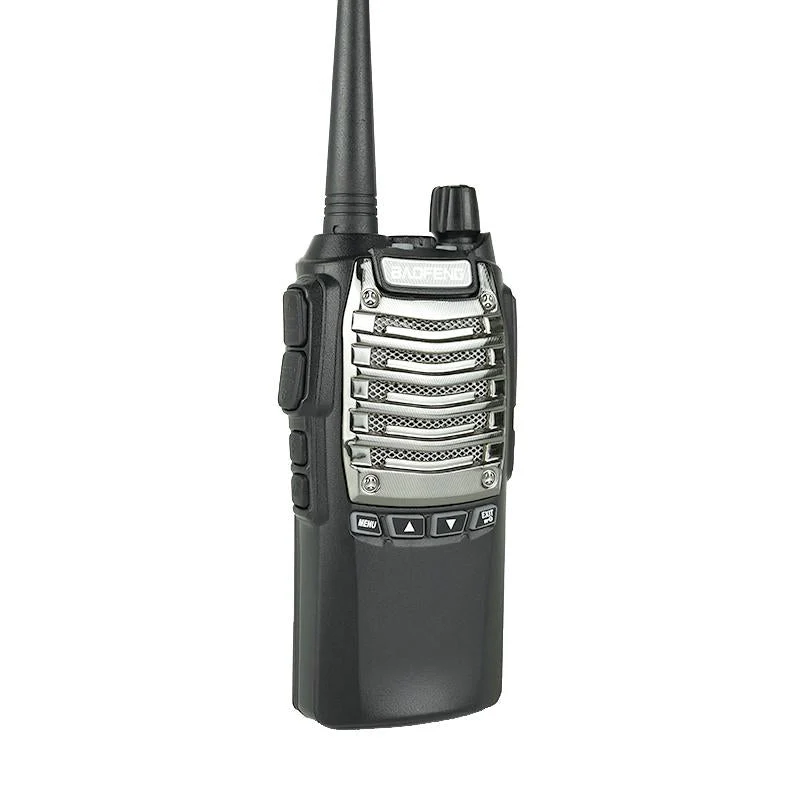

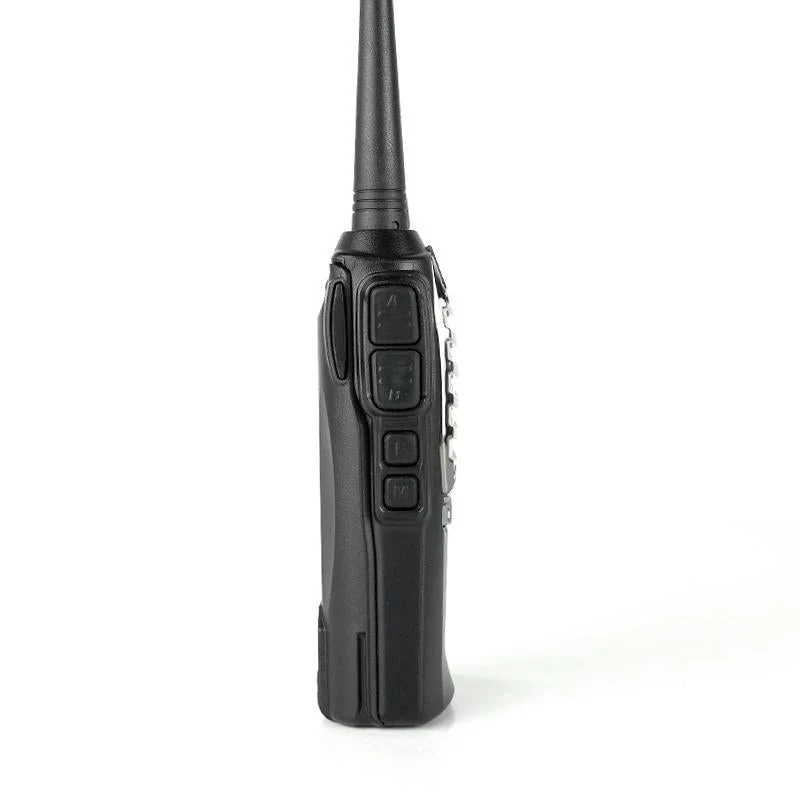

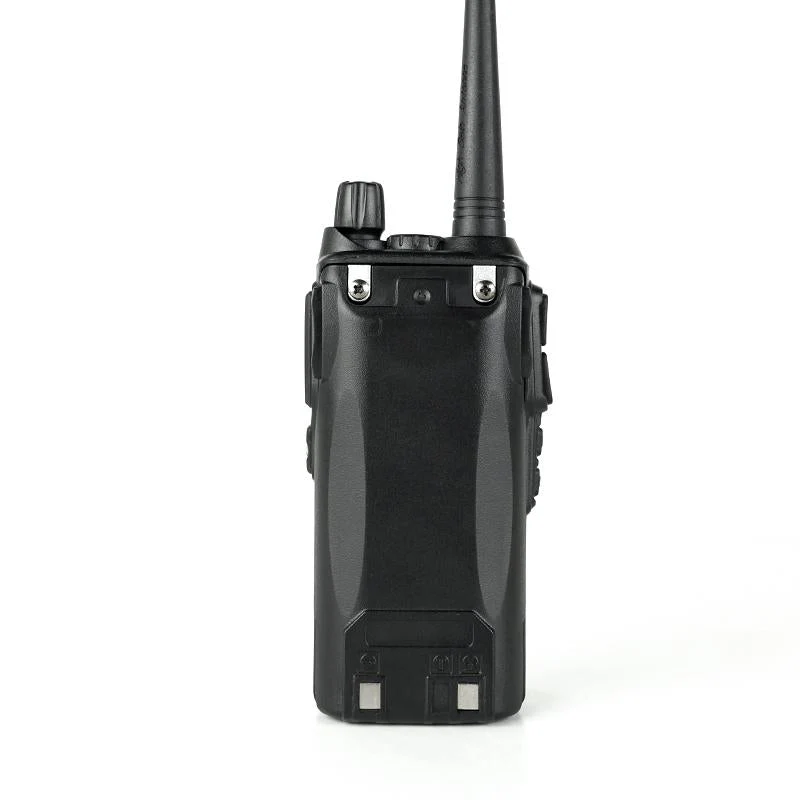

UV-8D 5W Power UHF no display

Main Features
-Two-way handheld transceiver.
-DTMF encoded.
-2800mAh Lithium-ion battery with high capacity.
-Alarm function.
-Up to 128 memory channels.
-Dual PTT Key
-CTCSS/ DCS
-DTMF Code
-LED Flashlight
-Dual PTT Key
-Dual Watch
-Emergency Alarm
-PC Programming
-Cable replication
-Call Tone 1750Hz
-High/low voltage warning
-Busy channel lockout
-Scan
-Dual standby channels Receive prompt function

Specifications
Frequency Range: VHF 144-148MHz & UHF 420-450MHz
Frequency Stability ±2.5ppm
Antenna High gain Dual Band antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Antenna SMA -Female
Earpiece / mic type Kenwood Plug type

Transmitter
Output power 4W/1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(W) /<2.5kHz(N) Intermediation distortion <10% Adjacent Ch. power ≤-65dB(W) / ≤-60dB(N) Pre-emphasis 6dB Current ≤1.6A(5W) Receiver RF Sensitivity -122dbm(12db SINAD) Audio power ≥0.5W Audio Distortion ≤10% Intermediation ≤-65dB(Wide)/≤-60dB(Narrow) Selectivity ≤-65dB(Wide)/≤-60dB(Narrow) Spurious Rejection ≤-65dB Blocking ≥85dBuv/m Standard Package Content Walkie talkie Li-Ion battery Antenna Belt Clip User's Manual Charger
