UV-5RA 5W Power UHF&VHF with display

1、Tri-color background light selectable; 0~9 grades VOX selectable
2、Emergency Alarm; LED Flashlight; Built-in key lock
3、CTCSS & DCS Scanning/ CTCSS & DCS Direct input
4、Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable.Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight

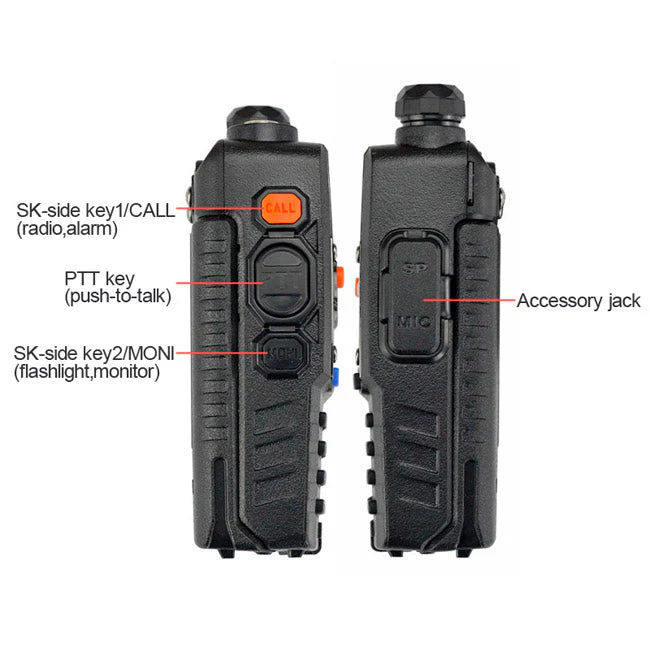

5、Dual PTT keys; A/B band independent operation

Main Feature
1. Frequency Range: VHF 144-148MHz & UHF 420-450MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 5 /1Watts
4. 128 Channels
5. 50 CTCSS and 104 CDCSS
6. Built-in VOX Function
7. 1750Hz Brust Tone
9. LED Flashlight
10. Large LCD Display
11. High /Low RF Power Switchable
12. 25KHz/12.5KHz Switchable
13. Emergency Alert
14. Low Battery Alert
15. Battery Saver
16. Time-out Timer
17. Keypad Lock
18. Monitor Channel
19. ROGER SET
　

Technical Specifications
Frequency Range: VHF 144-148MHz & UHF 420-450MHz
Channel No.: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Output power: 5W / 1W (Max 5W)
Mode of operation: Simple or semi-duplex
Dimensions（W x H x D）: 100 x 52 x 32 mm
Weight: 250g （including battery, antenna）

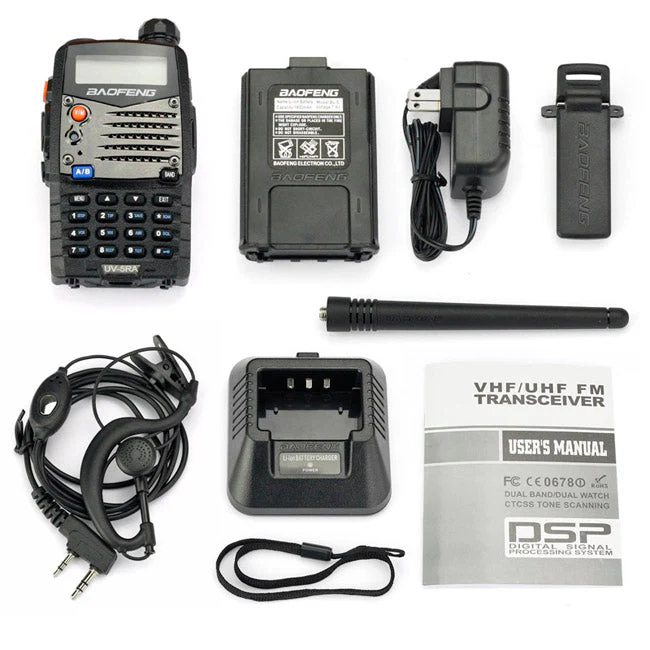

1 x Portable UV5RA Radio
1 x Antenna

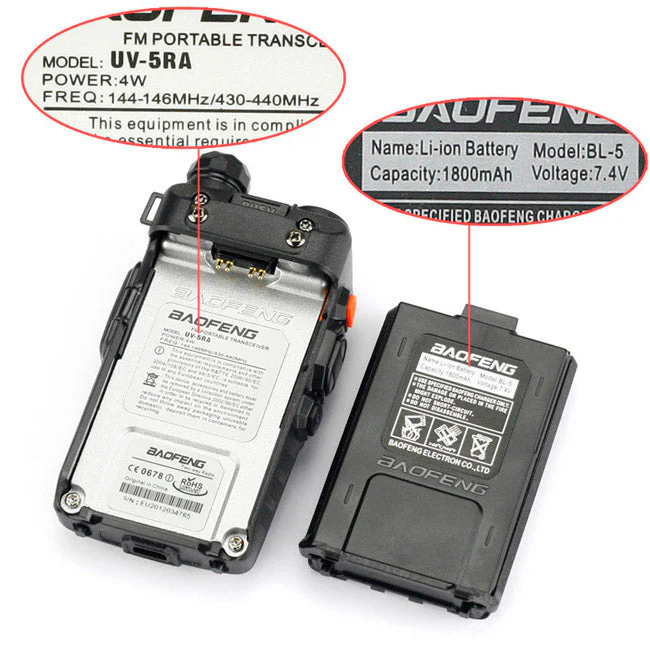

1 x Li-ion battery pack

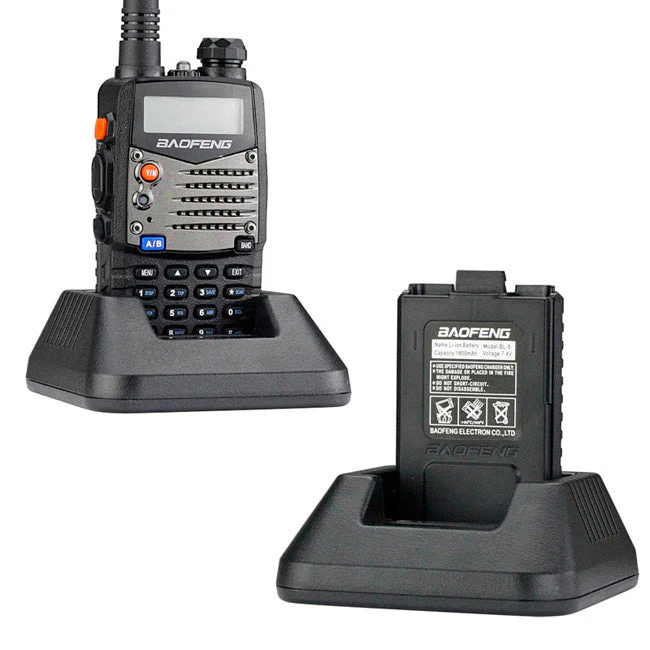

1 x Charger

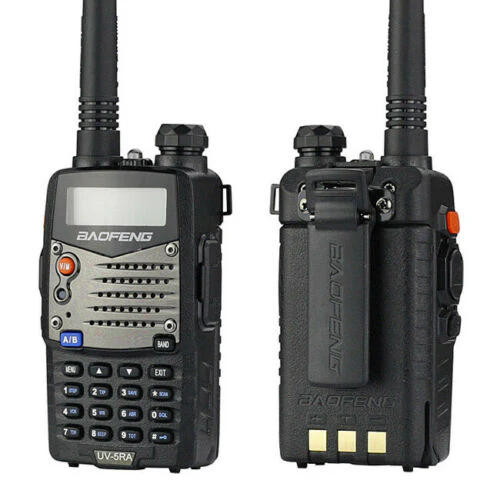

1 x Belt clip
1 x The sling
1 x User manual

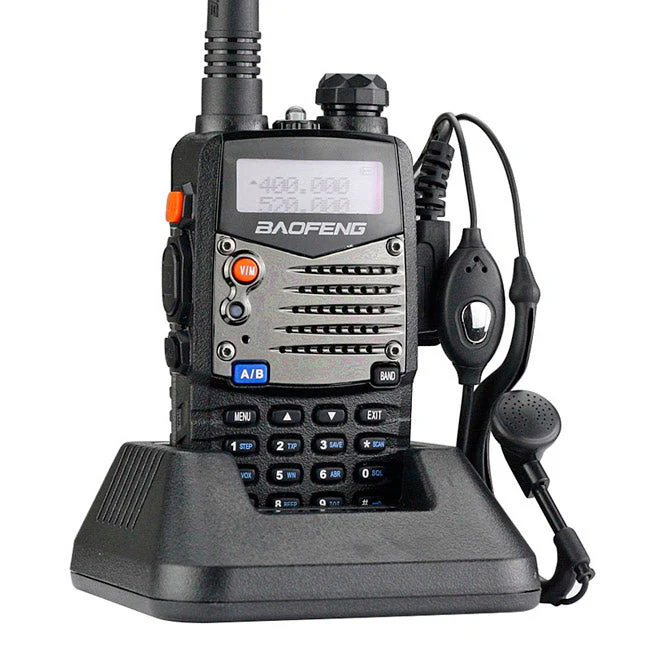

1 x PTT earpiece
