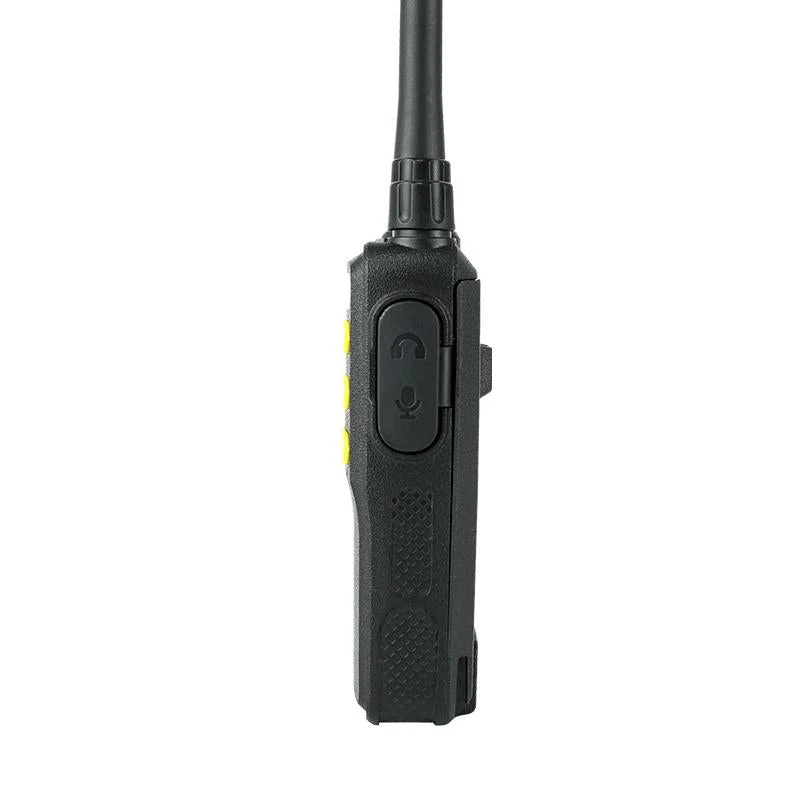

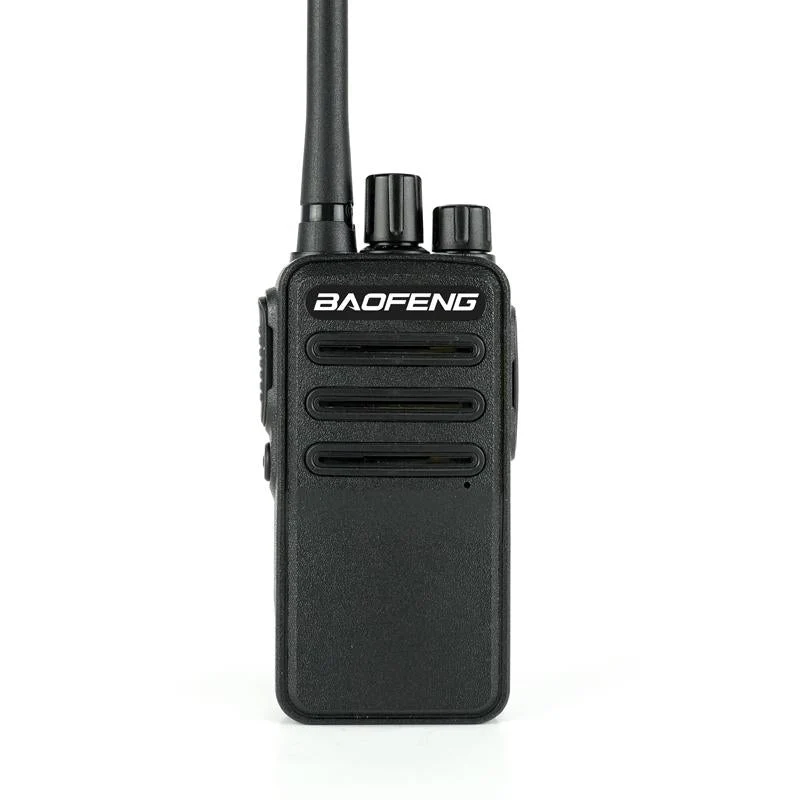

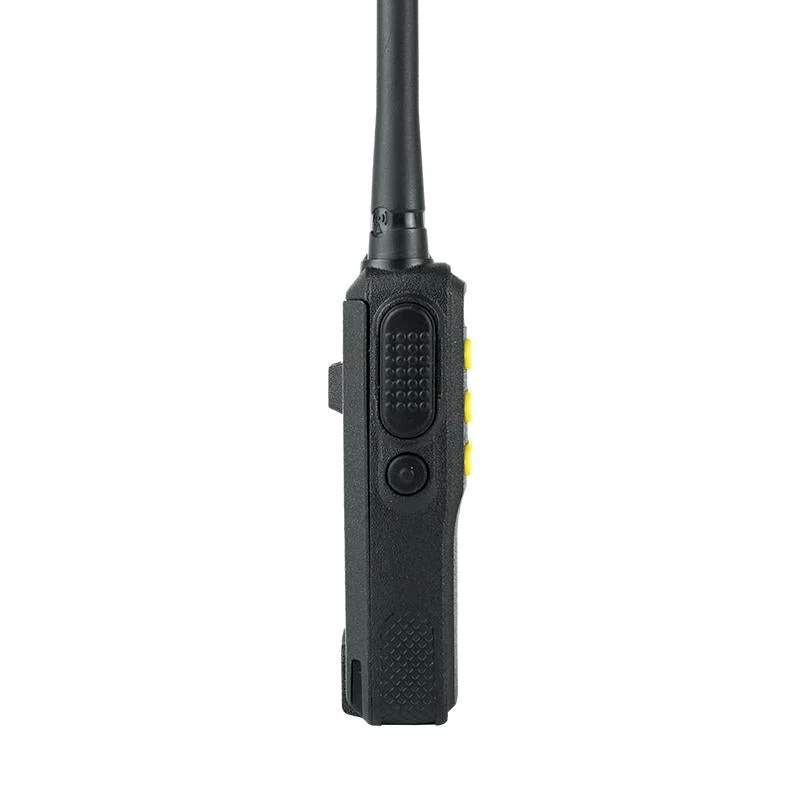

BF-V5 2W Power UHF no display

Main Features
Frequency UHF：420–450 MHZ (RX/TX)
Up to 16 Channels
Chinese/English Language
50 Groups CTCSS，105 Groups of standard DCS
Time-out timer(TOT)
Broad band/Narrow band
Battery saving function
Busy Channel Lockout (BCL)
Low Battery Voltage Warning
Programmable by PC

General
Frequency range UHF 420-450MHz
Memory channels 16 Groups
Operation voltage DC3.7V
Frequency stability ±2.5ppm
Operation temperature -20℃—+50℃
Mode of operation Simplex
Antenna impedance 50Ω

Transmitter
RF Power ＜5W
Maximum deviation(W/N) ≤5KHz/≤2.5KHz
Spurious emission ≤7.5uW
Adjacent channel power ≤-65dB/≤-60dB
SNR(W/N) ≥-45dB/≥-40dB
QT/DQT (W/N) 0.7±0.1KHz/0.4±0.1KHz
Modulation sensitivity 8—12mV
Transmission current ≤1.2A

Receiver
Sensitivity -122dBm (12dB SINAD)
Audio power 1W
Audio distortion ≤10%
Intermediation(W/N) ≥65dB/≥60dB
Adjacent channel selectivity(W/N) ≥65dB/≥60dB
Clutter suppression ≥65dB
Receiver current ≤380mA

Standard Package Content
Walkie talkie
Li-Ion battery
Antenna
Belt Clip
User’s Manual
Charger
