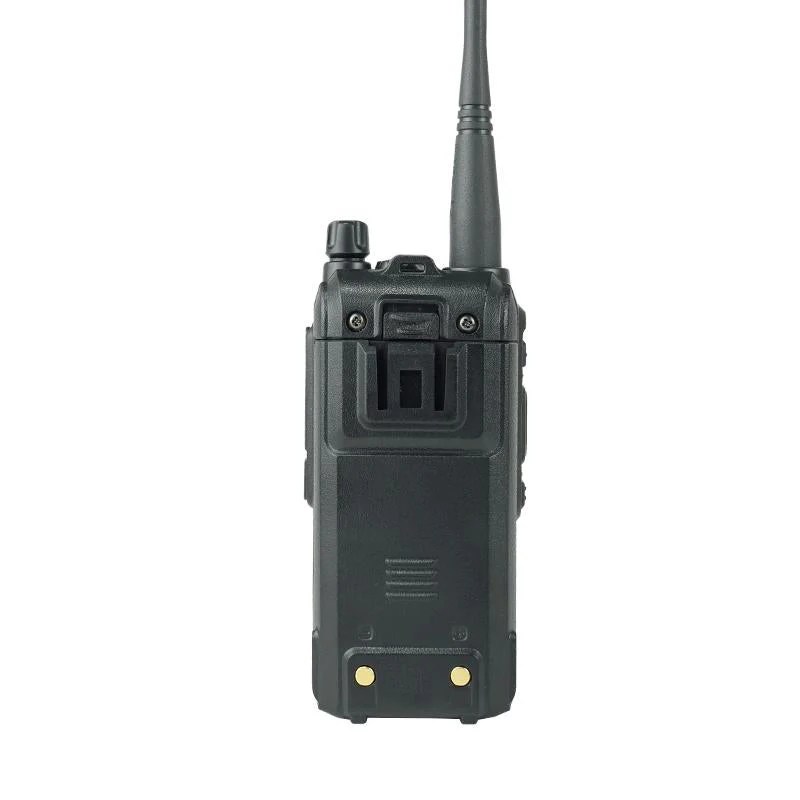

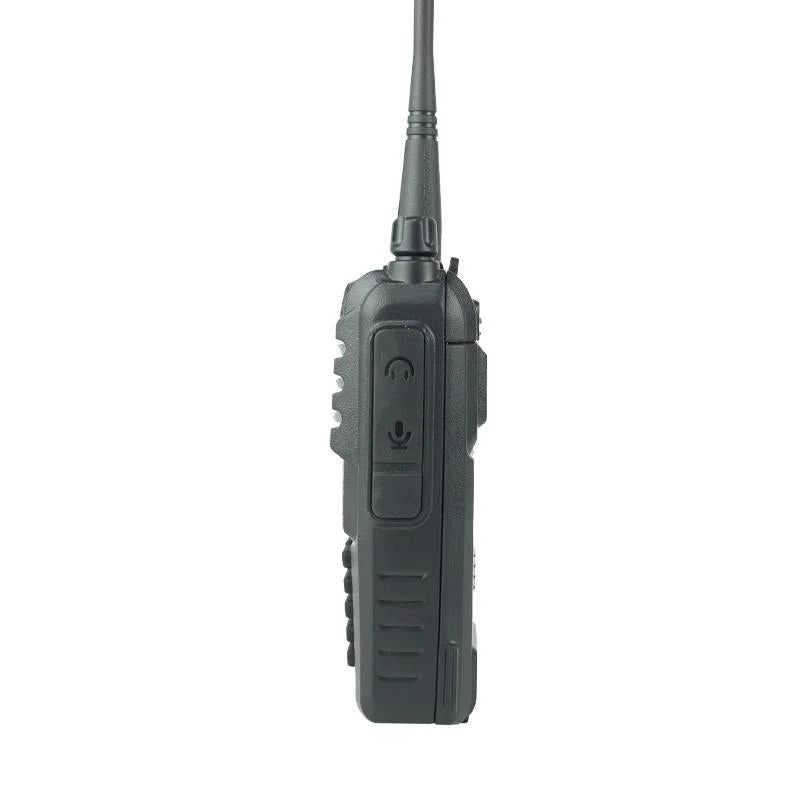

BF-A58S 5W Power UHF&VHF with display

Main Features
– DTMF encoded
– Bult-in key lock
– Tone end of transmission
– VOX function
– Noise Reduction Circuit
– Long Communication Range
– Battery Save.CTCSS/DCS
– FM Radio
– Dual Watch/dual reception
– Bult-in LED flashlight

General
Frequency Range: 144MHz-148MHz(Rx/Tx),200MHz-260MHz(Rx/Tx), 420MHz-450MHz(Rx/Tx)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Antenna impedance 50Ω
Operating temperature -20℃to60℃
Supply voltage Rechargeable Lithium-lon mAh 7.4V/1800
Consumption in receptiom 380mA
Consumption in transmission ≤1.4A
Mode of operation Simplex or semi-duplex
Duty cyde 03/03/54 min.(Rx/Tx/Standby)
Dimensions 65mm*41.5mm*133.8mm
Weight 279g(approximate)

Transmitter
RF power 5W/1W
Type of modulation FM
Emission class 16K￠F3E/11K￠F3E(W/N)
Maximum deviation ≤±5kHz/≤±2.5kHz(W/N)
Spurious emissions ＜-60dB

Receiver
Receiver sensitivity 0.2 μV(at 12 dB SINAD)
Intermodulation 60dB
Audio output 1W
Spurious Radiation ≥65dB

Standard Package Content
Walkie talkie
Li-Ion battery
Antenna
Belt Clip
User’s Manual
Charger
