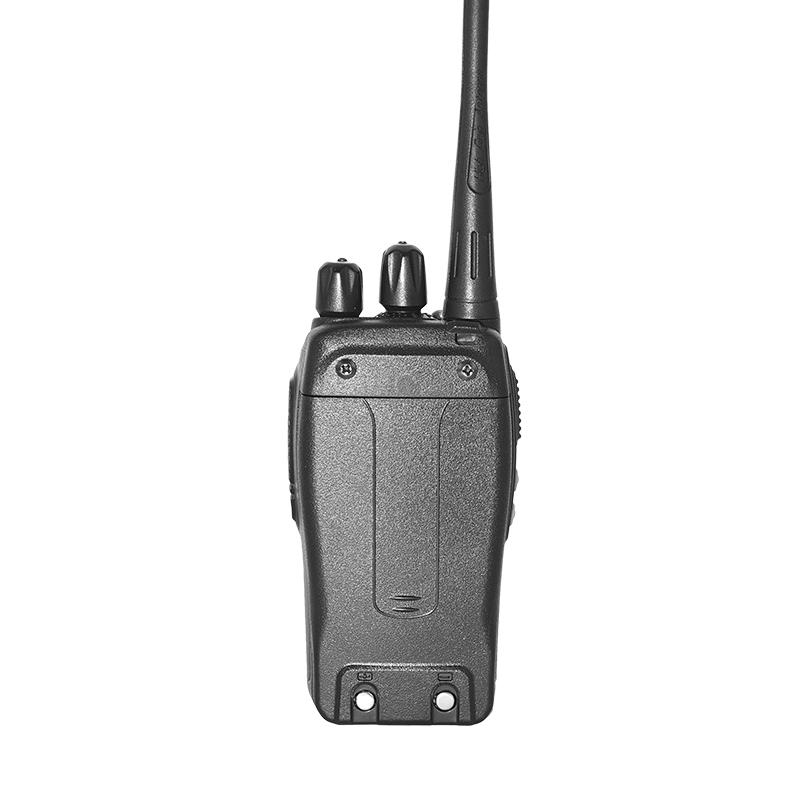

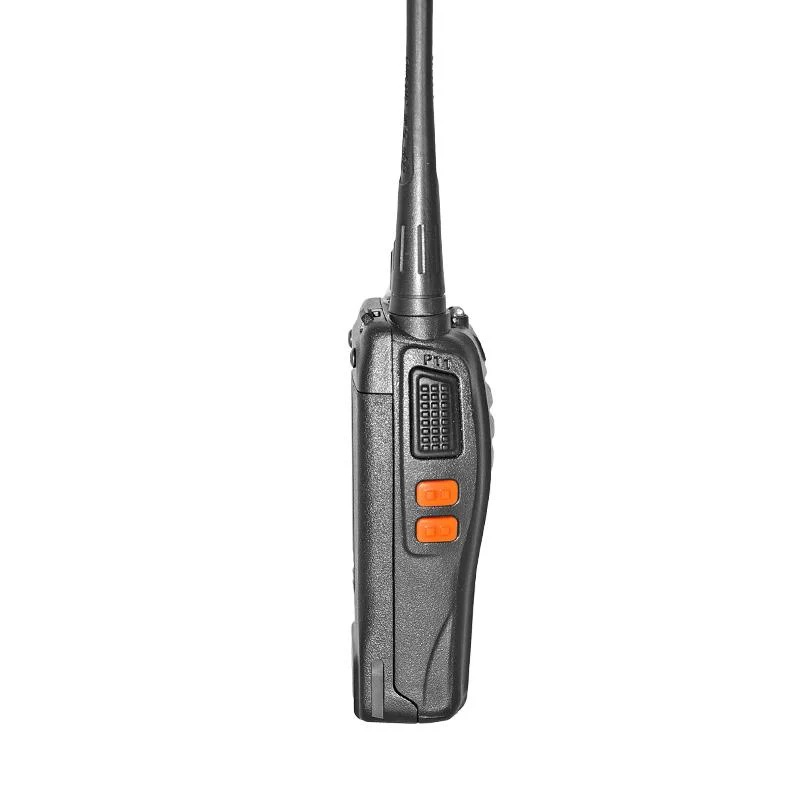

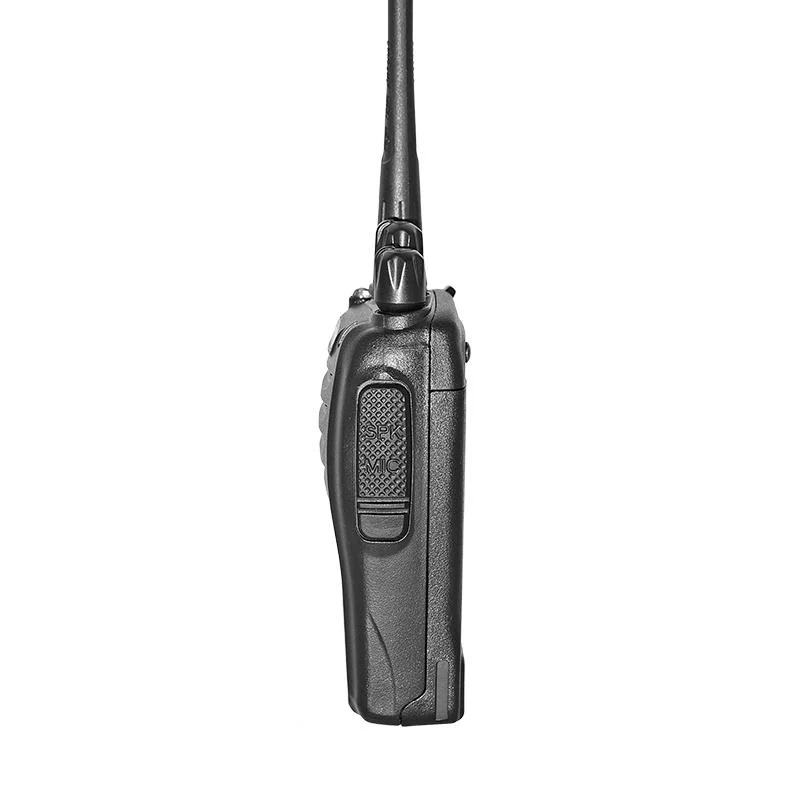

BF-666S 2W Power UHF no display

Main Features
– CTCSS / CDCSS
– VOX Function
– Voice Prompt
– PC Programming
– Emergency Alarm
– Desktop charger
– Battery Save
– Low Voltage Alert
– Time-out Timer
– Flashlight

General
Frequency Range (Single band) UHF 420-450MHz
Channel Capacity 16
Channel Spacing 25KHz
Operated Voltage DC 3.7 V
Battery 1500MAh Li-ion
Battery Life (5-5-90 duty cycle) About 8 hours
Frequency Stability ±2.5ppm
Operated Temperature -30°c-+60°c
Antenna Impedance 50Ω
Dimensions (L×W×H) (with battery,without antenna) 115×60×33 mm (without antenna)
Weight (with battery/antenna) 180g
Communication Range about 6km

Receiver
Sensitivity (12dB SINAD) ≤0.20 uV
Selectivity 55dB/50dB
Intermodulation ≥65dB
Adjacent Channel Selectivity ≥60dB
Spurious Response ≥60dB
FM Noise 45dB/40dB
Audio Power Output 1000mW
Audio Distortion ≤5%
Standby Current 15mA

Transmitter
RF Power Output <5W Modulation F3E Spurious Emission ≤65dB FM Noise ≤-45dB(W)/≤-40dB (N) Audio Distortion ≤5% Transmitting Current ≤1.3A Standard Package Content Walkie talkie Li-Ion battery Antenna Belt Clip User's Manual Charger
